Overview

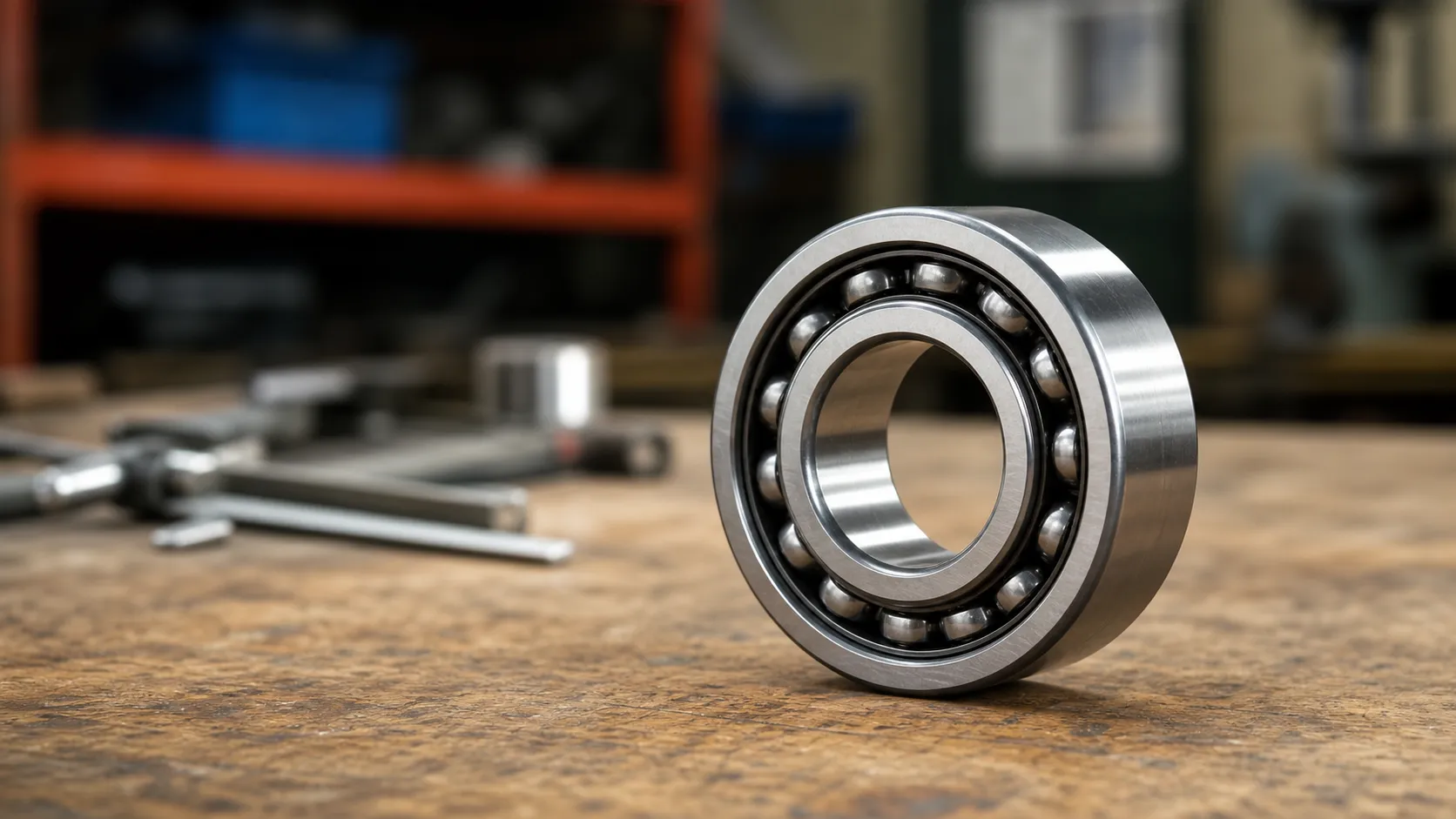

ABEC-5 high-speed bearing double row deep groove ball bearings 6003 deliver 17x35x10mm boundary dimensions with P5 tolerance control for spindles, drives, and sealed motor assemblies.
Machine tools: Low vibration and low noise rotation for CNC milling heads and precision grinding spindles at rated RPM.
Electric motors: 17mm bore and 35mm outer diameter fit standard shafts with 6003-2RS double sealed grease retention.
Power tools: Compact 17x35x10mm envelopes handle torque spikes in commercial saws and impact drivers with low friction ABEC-5 raceways.
Double Row vs Single Row Deep Groove Ball Bearings
Radial Load Distribution and Structural Stability
When your application demands higher weight capacity without expanding the physical envelope, stepping up to a double row ball bearing 6003 makes a massive difference. By running two parallel rows of rolling elements, these bearings optimize radial load distribution across a broader contact patch. This design enhances overall structural stability, reduces shaft flex, and keeps your machinery running true under heavy continuous pressure.
Single Row vs. Double Row 6003 Bearings
| Performance Feature | Single Row 6003 | Double Row 6003 |
|---|---|---|
| Radial Load Capacity | Standard | Up to 50% Higher |
| Structural Stability | Moderate | Maximum Rigidity |
| Bi-Directional Thrust | Limited | Enhanced Axial Support |
| Precision Standard | Standard / ABEC-5 | ABEC-5 Precision Grade |
When to Choose Double Row for High-Speed Setups
Double row 6003 units suit setups that demand rapid rotation and higher radial capacity within the standard 6003 envelope.
Choose double row configurations for high-speed setups when you face:
- Heavy dynamic loads that push standard single row units past their dynamic load rating at high RPM.
- Tight housing limits where you must keep the standard 17mm bore and 35mm outer diameter envelope.
- Precision spindles requiring minimal deflection at peak RPM thresholds.
Axial Load Capabilities in Heavy-Duty Machinery
Beyond tackling radial forces, our double row 6003 deep groove ball bearing construction offers superior axial load handling. The staggered dual raceways absorb thrust forces from both directions, preventing lateral shaft movement in heavy-duty machinery. Whether installed in automotive gearboxes, high-speed motor drives, or industrial pumps, this dual-direction support minimizes internal friction and delivers reliable long-term durability.
Double-row rigidity selected, ISO boundary dimensions and ABEC-5 tolerance bands define drop-in 17mm bore and 35mm outer diameter interchange for 6003 housings.

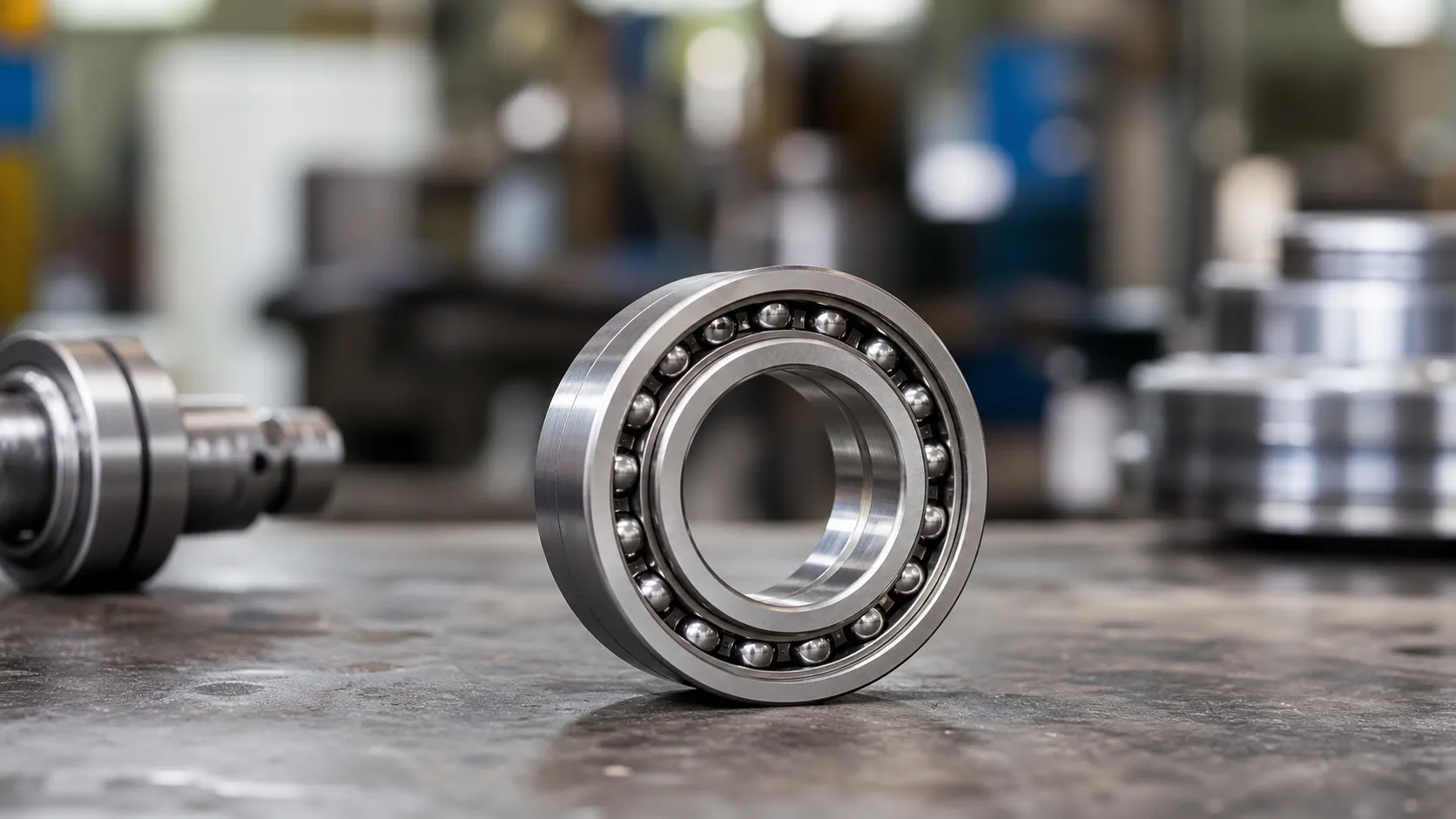

6003 Bearing Specifications and Dimensions
Abec-5 high-speed bearing double row deep groove ball bearings 6003 align with ISO boundary dimensions for drop-in fit on 17x35x10mm spindles, electric motors, and precision drives. Catalog 6003-2RS builds add double sealed 2RS sealed deep groove ball bearings protection.
Key Dimensional Measurements
- Bore Size (Inside Diameter): 17 mm
- Outside Diameter: 35 mm
- Width: 10 mm
- Standard Size Designation: 17x35x10mm
| Specification Parameter | Dimension / Rating |
|---|---|
| Bore Size (ID) | 17 mm |
| Outside Diameter (OD) | 35 mm |
| Width (W) | 10 mm |
| Bearing Type | Double row ball bearing 6003 |
| Precision Class | ABEC-5 precision rating (P5) |
ABEC-5 Precision Rating and Tolerance Standards
Standard industrial bearings often fail under continuous high RPMs due to uneven runout and wide tolerance bands. Our ABEC-5 precision rating guarantees ultra-tight precision tolerance standards across every production batch:
- Micron-Level Accuracy: Tighter inner and outer ring tolerances dramatically reduce radial runout.
- Low Friction & Heat: Exceptional raceway geometry minimizes friction, keeping operating temperatures low during extended high-speed runs.
- Balanced Motion: Uniform ball sizing keeps rotational vibration to an absolute minimum.
Dynamic and Static Load Capacity Performance
Double row configurations distribute radial stress across two parallel sets of rolling elements, yielding superior load capabilities compared to standard single-row options.
- Dynamic Load Rating (C): Manages high operational radial forces smoothly while running at max speed without metal fatigue.
- Static Load Rating (C₀): Protects raceways against permanent brinelling or deformation during sudden shock loads and heavy stationary torque.
Dimensional and load ratings fixed, duty cycle and contamination level determine whether sealed, shielded, or hybrid material stacks fit the application.
Industrial Applications — Machine Tools, Electric Motors & Power Tools
High-stress machinery demands reliability that standard single-row bearings cannot match. ABEC-5 double row 6003 units deliver tight tolerance control, superior load distribution, and smooth rotation across industrial environments.
Electric Motor Drives and High-Speed Spindles
Continuous high-RPM operations require optimal thermal dissipation and absolute balance to prevent mechanical failure.
- Electric motor bearings: Minimizes shaft deflection while maintaining low noise and low vibration—see high speed deep groove ball bearings for electric motors for matched RPM tiers.
- High speed spindle bearing units: Delivers strict rotational precision and high speed capacity for CNC milling, routing, and precision grinding heads.
Automotive Transmissions and Power Tool Assemblies
Rugged drivetrains and commercial tools demand bearings built to handle rapid acceleration, heavy vibration, and sudden shock loads.
- Power tools: Fits standard 17x35x10mm spatial envelopes while handling high torque spikes in commercial saws, rotary hammers, and impact drivers.
- Automotive assemblies: Handles combined radial and axial loads in transfer cases, auxiliary drives, and specialized gearbox shafts.
Precision Machinery and Robotic Drive Systems
Modern automated manufacturing requires exact repeatability, minimal play, and zero unexpected downtime.
- Robotic drive systems: Ensures smooth articulation and tight positioning accuracy for multi-axis robotic arms and automated guided vehicles (AGVs).
- Machine tools: Maintains steady shaft alignment and low friction under heavy duty cycles for milling, routing, and grinding heads.
Application envelope set, ABEC-5 raceway geometry and seal drag set the safe RPM ceiling and thermal margin at peak speed.
ABEC-5 High-Speed Performance Features
ABEC-5 raceway geometry supports intense rotational stress while keeping low vibration and low noise at elevated RPM.
High Speed Bearing RPM Limits and Thermal Control
| Performance Metric | ABEC-5 Engineering Advantage | Operational Benefit |
|---|---|---|
| High RPM Limits | Precise geometric track accuracy minimizes internal friction | Maximizes safe rotational speeds without premature failure |
| Noise & Vibration | Ultra-smooth raceway finishes eliminate micro-chatter | Delivers low noise and low vibration operation |
| Heat Dissipation | Reduced frictional drag prevents localized thermal buildup | Extends lubricant life and prevents bearing seizure |
- Elevated High RPM Ball Bearing Limits: Tighter tolerances ensure the rolling elements distribute loads evenly. This dramatically reduces friction, allowing the bearing to achieve its maximum high speed bearing RPM limit without sacrificing service life.
- Vibration Dampening and Low Noise: The precision-ground raceways ensure smooth ball-to-track contact. This structural refinement dampens harmonic vibration, making them ideal for high-speed spindles and electric motors where quiet performance is critical.
- Superior Heat Dissipation: Frictional heat is the primary enemy of high-speed setups. Our ABEC-5 manufacturing standards reduce rolling resistance, which minimizes heat generation and keeps operating temperatures stable even during continuous high-speed runs.
Speed and noise targets confirmed, ring steel, cage alloy, and seal type lock contamination control and grease life.
Material Construction and Shielding Options
High-Carbon Chrome Steel Construction
Standard builds use high-carbon chrome steel rings. For extreme RPM or corrosive wash-down, hybrid deep groove ball bearings with Si3N4 ceramic rolling elements cut mass and heat rise.
Rubber Seals vs Metallic Shields
6003-2RS double sealed units use contact rubber seal lips for dust and humidity exclusion. ZZ shields trade sealing for minimum drag on clean, high-RPM spindles.
| Feature | Rubber Seals (2RS) | Metallic Shields (ZZ) |
|---|---|---|
| Protection | Maximum seal against fine dust, liquid, and humidity | Ideal defense against larger particles and debris |
| Friction Level | Light contact seal; balanced performance | Low friction for maximum high-speed efficiency |
| Best For | Harsh, exposed, or dirty operating conditions | Clean, high-speed motor drives and spindles |
Cage options include stainless steel cage rails for general industrial duty and phenolic cage designs for higher speed limits where lower cage mass reduces centrifugal load.
Pre-Lubricated High-Speed Synthetic Grease
To eliminate initial setup downtime, every chrome steel 6003 bearing comes pre-lubricated with specialized high-speed synthetic grease.
- Heat Resistance: Maintains proper viscosity under severe high-RPM thermal stress.
- Low Friction: Optimized for smooth rotation, lower vibration, and quiet running.
- Zero Maintenance: Sealed-for-life design reduces routine service requirements.
Material and seal configuration chosen, press-fit discipline and lubricant fill protect precision tolerances during assembly.

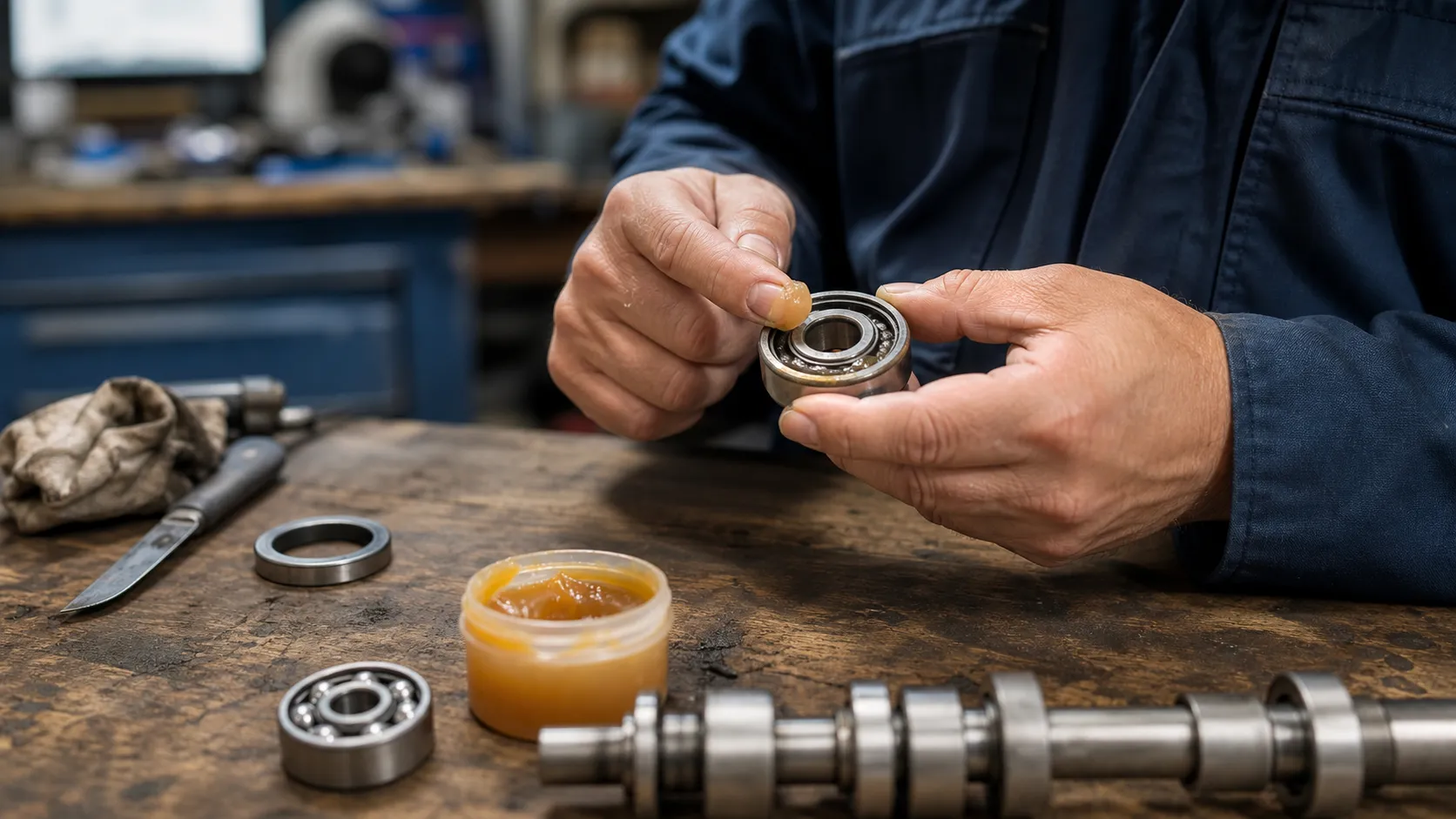

Installation and Maintenance Guidelines
Proper handling and lubrication discipline keep ABEC-5 6003 units within rated speed and noise limits throughout service life.
How to Fit ABEC-5 Precision Bearings Without Damage
Precision tolerance standards mean even minor improper forcing can ruin raceways and compromise speed performance. Recommended installation practices:
- Apply Uniform Force: Always push directly on the ring with the interference fit (the inner ring for shafts, the outer ring for housings). Never transmit force through the rolling elements.
- Utilize Thermal Fitting: For tight shaft fits, heat the 6003 deep groove ball bearing using an induction heater to expand the inner ring smoothly. Never use an open torch.
- Maintain Cleanliness: Contamination is the leading cause of early failure. Unbox your bearings only when ready to press them onto the shaft.
Selecting Optimal Lubrication for High-Speed Operation
High speed bearing RPM limits depend heavily on heat management and friction control. Choosing the right lubricant keeps your high RPM ball bearing running cool:
| Lubrication Type | Best For | Advantages | Fill Level |
|---|---|---|---|
| Synthetic High-Speed Grease | Standard electric motors & power tools | Maintenance-free, long service life, low friction | 30% – 40% fill capacity |
| Light Synthetic Oil / Oil Mist | High speed spindle bearings & machine tools | Superior heat dissipation, maximum speed capability | Continuous thin film |
Note: Over-greasing causes churning, rapid heat build-up, and early failure. Always stick to precise fill limits for high-speed setups.
Monitoring Bearing Wear and Replacement Indicators
We advise setting up a regular condition-monitoring schedule for heavy-duty drive systems to avoid unexpected downtime. Look out for these early replacement signals:
- Vibration Spikes: Use baseline vibration monitoring to detect raceway fatigue or cage damage before complete failure.
- Temperature Jumps: A sudden rise in operating temperature points to degraded lubricant, excessive preload, or seal failure.
- Audible Noise: Whining, grinding, or clicking sounds signal severe contamination or spalling on the inner/outer tracks.
- Excessive Radial Clearance: Increased play beyond standard radial clearance C3 specs means the rolling elements have worn out and need immediate replacement.
Installation and lubrication paths covered, the FAQ compares seal types, speed limits, and single-row versus double-row upgrades.
Frequently Asked Questions
What does ABEC-5 precision rating mean for high-speed bearings?
An ABEC-5 precision rating indicates tighter tolerance standards and superior manufacturing accuracy compared to standard ABEC-1 bearings. For an ABEC-5 high-speed bearing double row deep groove ball bearings 6003 assembly, this higher rating delivers exceptional dimensional control, reduced radial runout, and smoother raceway surfaces. This translates directly to less vibration, quieter operation, and significantly lower heat generation during high-RPM performance.
Can double row bearings replace standard single row 6003 bearings?
Yes, provided your machinery's shaft and housing dimensions account for the increased width. While a standard 6003 deep groove ball bearing features a 17x35x10mm footprint, a double row ball bearing 6003 offers twice the row capacity, handling much higher radial loads and preventing shaft misalignment under heavy stress. We recommend upgrading to a double row design whenever single row bearings experience premature wear under severe mechanical loads.
How fast can an ABEC-5 6003 bearing rotate safely?
Safe rotational speeds depend on your lubrication selection, cage material, and seal configuration. An ABEC-5 precision 6003 unit features a high speed bearing RPM limit ranging from 18,000 RPM up to 24,000 RPM or higher when running with high-speed synthetic grease or oil mist. The tight manufacturing tolerances minimize internal friction, allowing your high-speed spindles and electric motors to sustain top speeds without dangerous thermal expansion.
When should you specify 6003-2RS double sealed builds?
6003-2RS contact rubber seal lips suit exposed motors, power tools, and wash-down areas where grease retention and contamination exclusion outweigh the small drag penalty versus ZZ shields.
Which seal type works best for high-speed double row ball bearings?
The optimal choice depends on your specific operating environment:
- Metal Shielded Bearing (ZZ): Ideal for clean, ultra-high-speed operations requiring minimum friction torque and zero drag.
- Rubber Sealed Ball Bearing (2RS): Best for environments exposed to dirt, dust, or fluid contamination, offering maximum sealing protection and grease retention.
Share bore, seal code (6003-2RS or ZZ), cage preference, and target RPM for abec-5 high-speed bearing double row deep groove ball bearings 6003 cross-check—Contact JN Bearings with quantity and application duty for ISO boundary verification.
