Overview
nylon small deep groove ball bearings deliver quiet, low friction rolling bearings for 3d printing guides, furniture wheel rollers, and mini ball bearings in compact motor lines.
Polyamide cage: PA66 polyamide cage on chrome or stainless carbon steel rings for balanced radial load duty.
Non-metallic builds: full plastic bearings and solid non-metallic rings for wet, corrosion-prone environments.
Nylon Small Deep Groove Ball Bearings — Types & Polyamide Cage Designs
Nylon small deep groove ball bearings span three structural families: polyamide cage hybrids on steel rings, full plastic bearings, and outer-ring nylon-coated 608 bearing guide rollers for track duty.
| Material Property | Engineering Benefit |
|---|---|
| High Tensile Strength | Resists deformation under radial load at high speeds |
| Low Friction Coefficient | Enables smooth, low-friction operation with minimal wear |
| Vibration Damping | Absorbs impact and delivers low noise ball bearings performance |
| Thermal Stability | Maintains dimensional stability across diverse operating temperatures |
Nylon Cage Ball Bearings vs. Full Nylon Structures
The role of nylon in small ball bearings depends entirely on the structural design:
- Nylon Cage Ball Bearings: These hybrid rolling bearings utilize standard high-carbon steel, chrome steel, or stainless steel for the inner and outer rings and balls, while utilizing a polyamide cage (retainer). This setup provides the structural strength of metal with the quiet, low-friction benefits of nylon.
- Full Nylon Structures: These are completely non-metallic, plastic deep groove ball bearings. Both the inner and outer rings are molded from high-performance plastics, often paired with glass or ceramic balls. They are completely non-magnetic and highly resistant to wet, corrosive environments.
Nylon-Coated Deep Groove Guide Rollers
For linear motion and track-guided systems, compare discount miniature deep groove ball bearings for bare-metal miniature lines; production covers guide roller bearings featuring an outer-ring nylon coating.
- Design: A standard steel small ball bearing (such as a 608 bearing) is permanently encased in a thick, precision-molded outer nylon sleeve or tire.
- Function: Commonly used as a furniture wheel, sliding door track roller, or 3D printing guide, this design prevents metal-to-metal wear on tracks and ensures ultra-quiet, smooth rolling.
High-Performance Polyamide (PA66) Materials
Production covers polymer components using premium polyamide (PA66), often reinforced with glass fiber. This material delivers exceptional mechanical properties:
Why Choose Nylon for Small Deep Groove Ball Bearings?
Material choice dictates noise, lubrication, and weight in precision equipment. Engineered nylon in small deep groove ball bearings addresses quiet operation, clean environments, and wear resistance gaps that all-metal races cannot fill.
| Performance Metric | Nylon Small Deep Groove Bearings | Standard All-Steel Bearings |
|---|---|---|
| Operating Noise | Extremely low (vibration dampening) | Higher (metallic contact noise) |
| Lubrication Needs | Can run completely dry or with minimal oil | Requires constant grease/oil |
| Rotational Weight | Ultra-lightweight (reduces motor load) | Heavy (higher inertia) |
| Rust & Moisture | Highly resistant to water and chemicals | Prone to oxidation and rust |
| Starting Torque | Minimal (smooth, instant start) | Higher (due to grease drag) |
Key Performance Benefits
- Outstanding Noise Reduction: Nylon inherently dampens vibrations. Polyamide cages and coatings absorb impact, significantly lowering decibel levels compared to metal-caged options.
- Low Friction & Dry Running: Nylon boasts an exceptionally low coefficient of friction. These bearings can run smoothly without grease, preventing dust buildup in sensitive environments like 3D printers or office equipment.
- Energy-Saving Lightweight Build: Reducing rotating mass is critical for high-speed, small-motor applications. Nylon components slash overall bearing weight, lowering starting torque and power consumption.
- Superior Corrosion Resistance: Unlike standard carbon steel, nylon does not rust. It stands up to moisture, washdowns, and mild chemical exposure without seizing.
Material Comparison: Nylon vs. Standard Steel Bearings
To compare the right configuration for the project, here is a direct look at how nylon modified designs compare to traditional all-steel bearings:

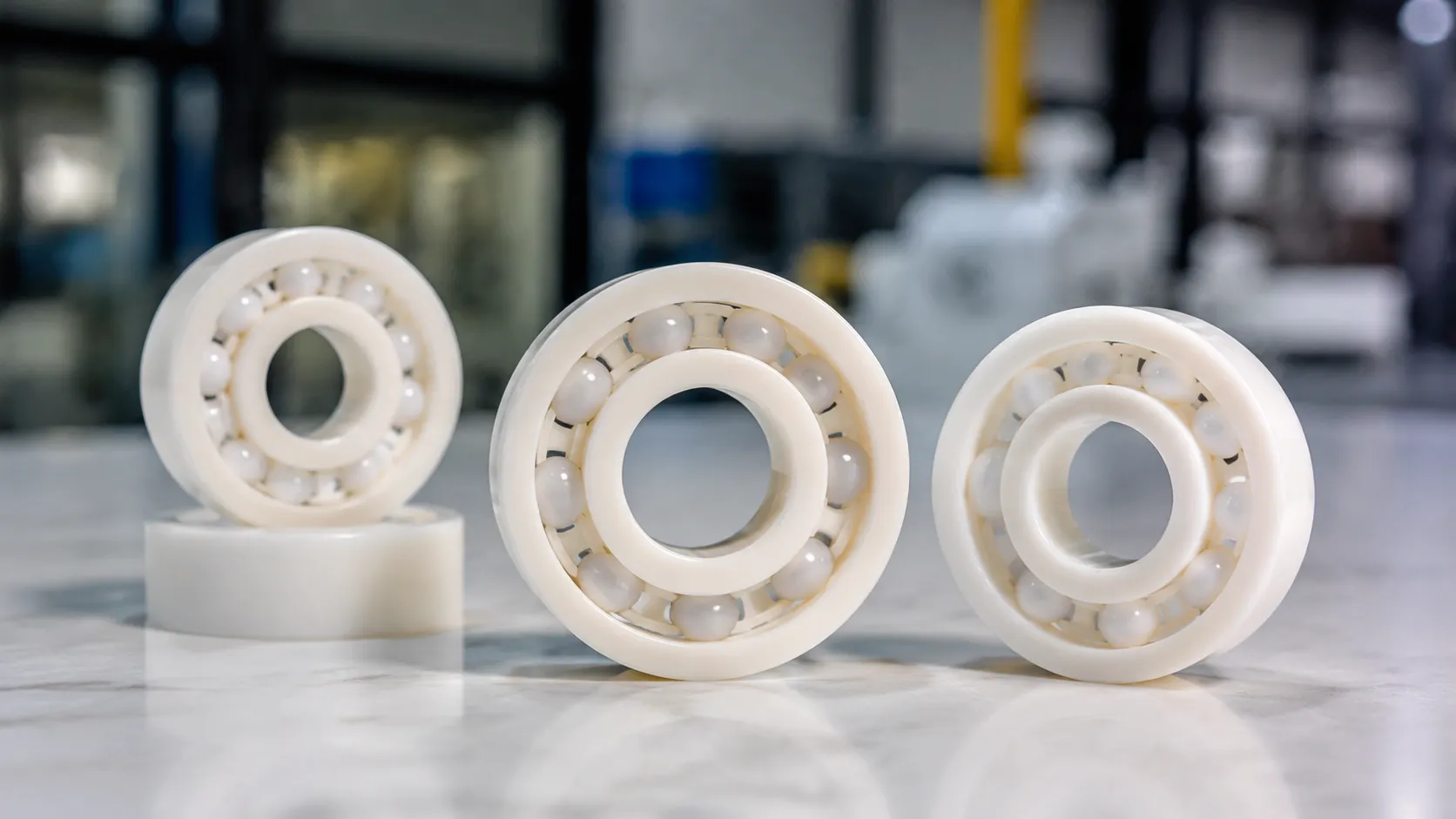

Product Structures of Nylon Small Deep Groove Ball Bearings
Production covers nylon small deep groove ball bearings in several material combinations to match exact application requirements. Whether teams need high-speed precision or complete corrosion resistance, rings, balls, and cages are configured to deliver the best performance.
Nylon Cage with Chrome Steel Rings and Balls
This is the most popular configuration for everyday industrial and motor applications. It pairs a lightweight polyamide cage (PA66) with high-carbon chrome steel rolling elements.
- Best For: High-speed electric motors, household appliances, and power tools.
- Key Benefit: The nylon cage ball bearings significantly reduce operating noise and heat buildup compared to steel cages.
- Common Fit: Perfect for standard 608 bearing sizes and other mini ball bearings requiring smooth, quiet rotation.
Nylon Cage with Stainless Steel Rings and Balls
For environments exposed to moisture, light chemicals, or washdowns, chrome steel is swapped for high-grade stainless steel (SUS304 or SUS440C)—see discount stainless steel deep groove ball bearings for all-stainless catalog lines.
- Best For: Food processing equipment, medical instruments, and outdoor marine gear.
- Key Benefit: Combines the rust prevention of stainless steel with the low-friction, self-lubricating properties of a polyamide cage.
- Operation: Runs smoothly with minimal lubrication, preventing contamination.

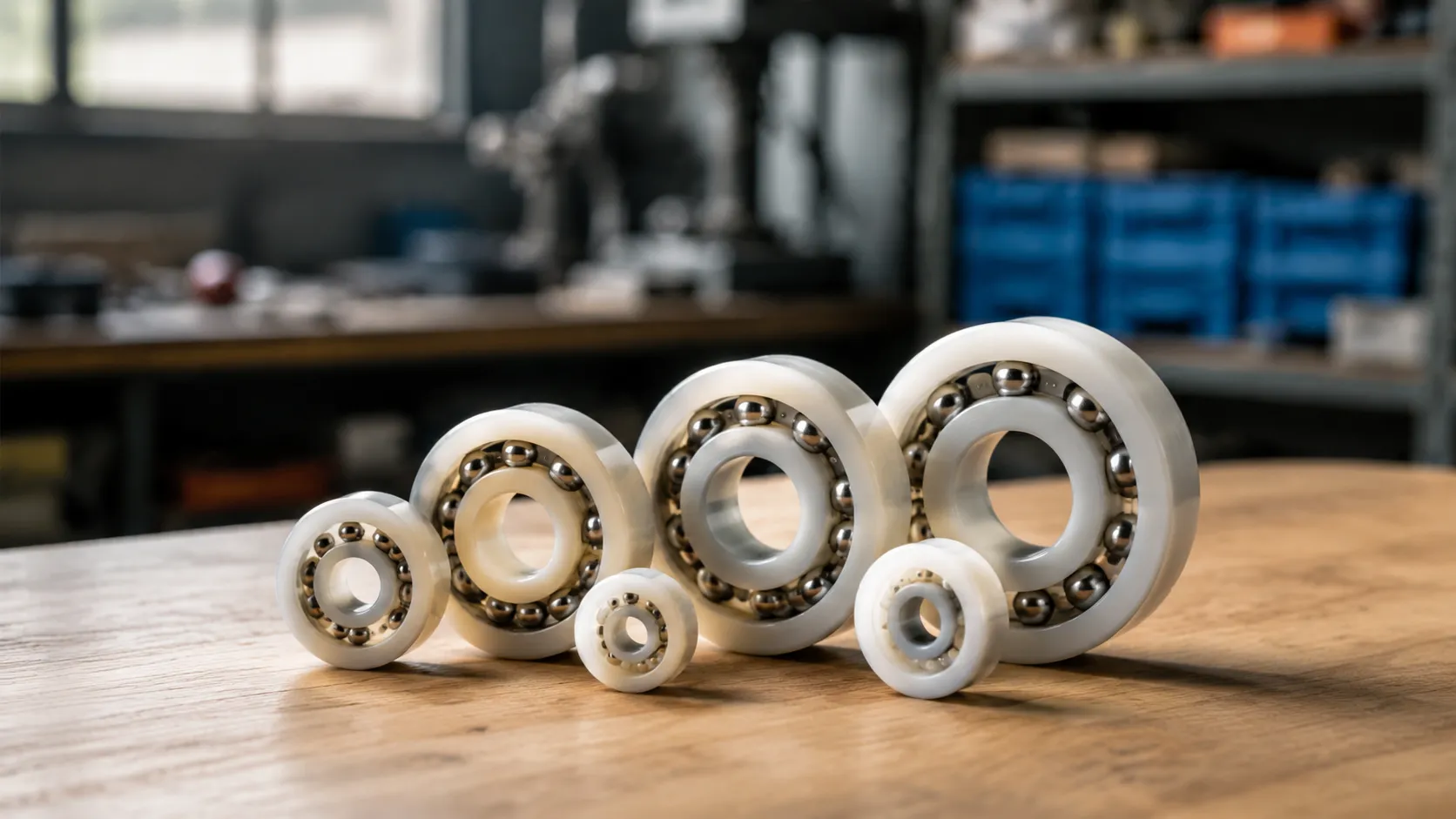

Full Plastic and Solid Nylon Bearings
When the application cannot tolerate metal, production covers completely non-metallic, plastic deep groove ball bearings. These feature solid polymer inner and outer rings with glass or ceramic balls.
- Best For: MRI machines, cleanrooms, chemical tanks, and underwater equipment.
- Key Benefit: 100% non-magnetic, highly corrosion-resistant, and incredibly lightweight.
- Maintenance: Completely rust-proof and designed to run dry without any grease.

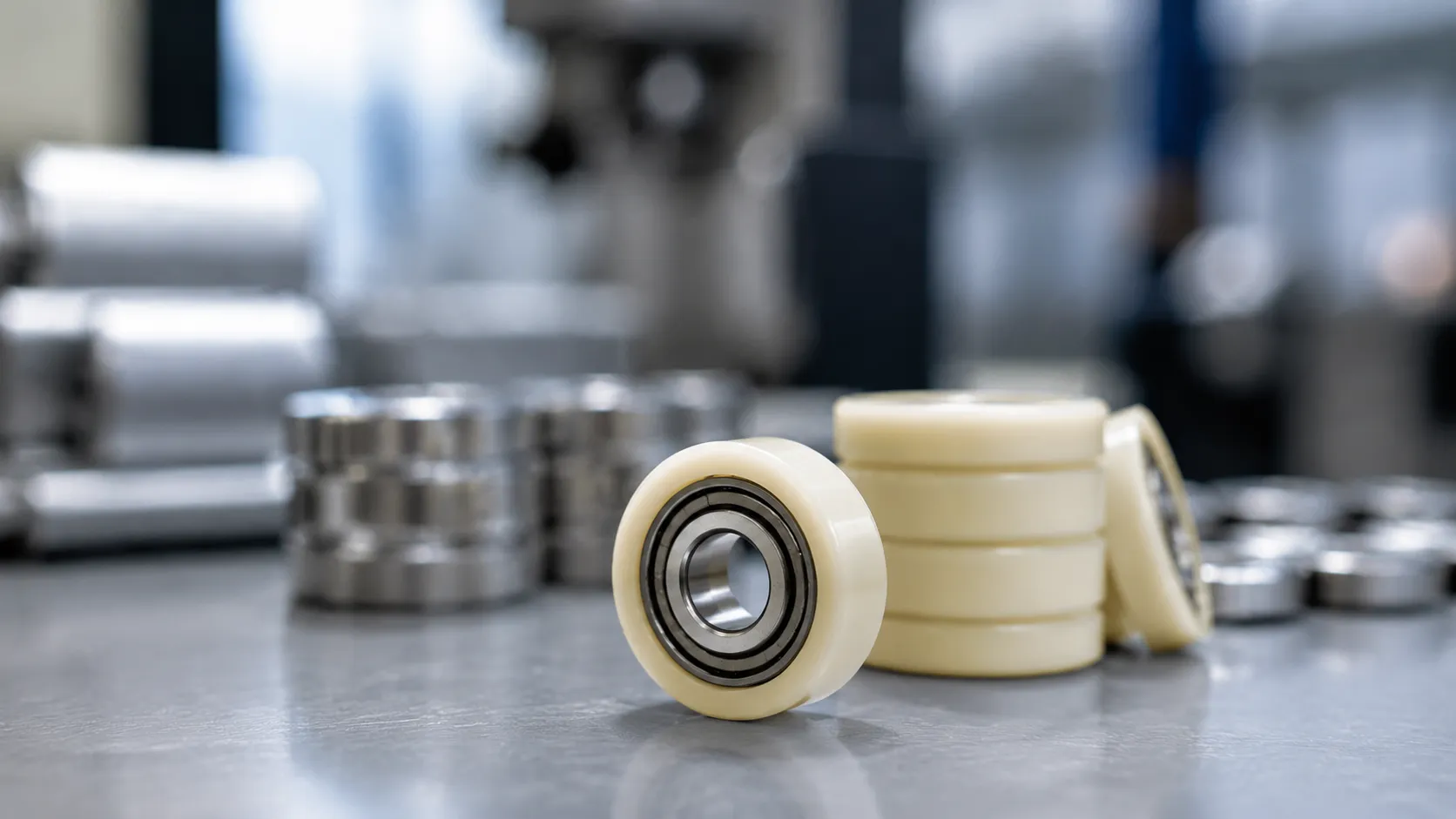

Outer-Ring Nylon-Coated Guide Rollers
A tough, wear-resistant nylon outer sleeve directly over a precision steel ball bearing.
- Best For: Sliding doors, window tracks, 3D printing guides, and furniture wheel assemblies.
- Key Benefit: Absorbs vibrations, dampens track noise, and protects mating surfaces from wear.
- Design: Available with flat, U-groove, or V-groove outer profiles.
Material Selection Matrix
| Bearing Structure | Ring Material | Ball Material | Cage/Sleeve Material | Primary Benefit |
|---|---|---|---|---|
| Standard Quiet | Chrome Steel | Chrome Steel | Polyamide (PA66) | High speed, lowest noise, cost-effective |
| Corrosion Resistant | Stainless Steel | Stainless Steel | Polyamide (PA66) | Rust resistance, low friction |
| Fully Non-Metallic | Solid Plastic (POM/PP) | Glass or Ceramic | No cage / Integrated | 100% non-magnetic, waterproof |
| Guide Roller Type | Chrome Steel | Chrome Steel | Nylon Outer Coating | Ultra-quiet linear rolling, wear resistance |
Technical Specifications: Nylon Small Deep Groove Ball Bearings Dimensions
Nylon small deep groove ball bearings follow metric miniature standards for drop-in fit—bore 2–12 mm, OD 5–28 mm, width 2.5–8 mm across mini ball bearings and 608 bearing sizes.
Clearance and Precision Specifications
| Parameter | Options Available | Target Application |
|---|---|---|
| Precision Grade | ABEC-1, ABEC-3, ABEC-5 | High-speed electric motors, 3D printers, office tech |
| Radial Clearance | C2 (Tight), C0 (Standard), C3 (Loose) | C3 fits high-temp or high-load setups; C2 reduces play |
| Groove Depth | Deep Groove (Standard) | Optimized for balanced radial and light axial loads |
Production covers nylon small deep groove ball bearings to precise metric standards, ensuring a drop-in fit for the equipment. Whether teams need standard miniature sizes or specific clearance tolerances, production lines deliver consistent dimensional accuracy.
Sizing and Dimension Ranges
The standard product line covers the most common miniature and small instrument sizes used in industrial manufacturing and product design:
- Bore Size (d): 2 mm to 12 mm
- Outer Diameter (D): 5 mm to 28 mm
- Width (B): 2.5 mm to 8 mm
Clearance and Precision Specifications
Shield and Seal Configurations
Closure styles are customized style of our small ball bearings to match the operating environment. Choose the right protection against dust, moisture, and contaminants:
- Open Structure: No shields. Ideal for setups where external oil or grease flows freely through the system.
- ZZ Style (Double Shielded): Non-contact metal shields. Keeps large dust particles out while maintaining low friction for high-speed runs.
- 2RS Style (Double Sealed): Contact rubber seals. Provides maximum protection against moisture, fine dust, and fluid splashes.
Load, Speed & Temperature Limits for Nylon Small Deep Groove Ball Bearings
Physical limits differ between polyamide cage hybrids and full plastic bearings—especially thrust bearings duty, dry-run speed, and radial load ceilings versus all-steel alternatives.
| Performance Metric | Nylon Cage with Steel Rings | Full Plastic / Solid Nylon Bearings |
|---|---|---|
| Radial Load Capacity | High (limited by steel ring rating) | Light (typically < 15% of steel equivalent) |
| Axial Load Capacity | Moderate | Very Light (thrust loads should be minimized) |
| Max Speed (Lubricated) | Up to 35,000 RPM (depending on size) | Up to 5,000 RPM |
| Max Speed (Dry/Unlubricated) | Not recommended for high speeds | Up to 1,500 RPM |
| Operating Temp Range | -40°C to 120°C (-40°F to 248°F) | -30°C to 100°C (-22°F to 212°F) |
To maximize nylon small deep groove ball bearings, teams need to know the exact physical limits. While nylon offers incredible advantages in noise reduction and weight savings, it operates under different load and speed profiles than all-metal alternatives.
Load, Speed, and Temperature Limits
Key Operating Parameters
- Load Limits: Small ball bearings using a polyamide cage handle standard radial loads beautifully because the steel rings support the force. For full plastic structures, keep loads light to prevent outer ring deformation.
- Permissible Speeds: Running dry is highly convenient but generates heat. If teams run miniature deep groove ball bearings dry, keep the surface speed low. For high-speed applications, light grease is recommended or oil lubrication to maximize life.
- Temperature Restrictions: Standard polyamide (PA66) cages maintain dimensional stability up to 120°C (248°F). Exceeding these limits can soften the polymer, leading to premature wear.
- Wear Life Expectations: In clean, light-load environments, nylon bearings often outlast steel because they resist moisture-induced corrosion and dry-running seizure. Regular preventative maintenance and matching the bearing to your specific load profile will ensure maximum service life.
Standard Sizes and Customization Support for Nylon Small Deep Groove Ball Bearings
Standard inventory covers standard metric of standard metric sizes and offer fast, flexible customization to match your exact engineering drawings. Whether teams need drop-in replacements for standard miniature lines or a completely custom outer profile, production covers it in-house.
Miniature Bearing Series Sizes
For ultra-compact designs, production covers miniature deep groove ball bearings starting at a 1 mm bore size. These micro-sized components are highly favored in precision instruments and small drone motors where space is tight and weight must be kept to an absolute minimum. Popular miniature sizes include:
600 Series: 603, 604, 605, 606, 608, 609
620 Series: 623, 624, 625, 626
MR Series: MR52, MR63, MR84, MR105
Small Standard Metric Configurations
Standard small-size metric configurations cover bore diameters from 3 mm to 10 mm. These are the workhorse sizes for everyday industrial applications, electric hand tools, and small automation systems.
| Bearing Type | Bore (d) | Outer Diameter (D) | Width (B) |
|---|---|---|---|
| 608 (Standard) | 8 mm | 22 mm | 7 mm |
| 625 | 5 mm | 16 mm | 5 mm |
| 695 | 5 mm | 13 mm | 4 mm |
| 688 | 8 mm | 16 mm | 5 mm |
Customized Non-Standard Dimensions and Custom Groove Shapes
When off-the-shelf sizes do not fit, production builds custom deep groove bearings tailored to your exact application. Production can modify the inner ring, outer ring, or nylon bearing sleeve to match unique mounting requirements.
Custom Outer Ring Profiles: V-grooves, U-grooves, and flat-face profiles for track guidance.
Non-Standard Dimensions: Modified bore sizes, extended inner rings, or custom flange configurations.
Specialized Materials: Custom glass-filled polyamide cages or specialized polymer blends for high-load sliding wheels.
OEM/ODM Support for Specialized Engineering Drawings
Engineering teams work directly with procurement teams to take designs from a CAD drawing to physical production.
Fast CAD Verification: Send .step, .dwg, or .pdf drawings, and engineering teams verify tolerances and material compatibility within 24 hours.
Prototype Runs: Low-volume prototype runs to test performance in the application before committing to mass production.
Custom Branding: Laser engraving on the metal shields or customized packaging is available for bulk OEM orders.
Applications for Nylon Small Deep Groove Ball Bearings
Application fit: 3d printing and automation guides; office mini ball bearings and copier feeders; sliding doors and furniture wheel guide roller bearings; medical and cleanroom dry-run lines; appliances and DIY 608 bearing drop-in repairs.
Selecting Nylon Small Deep Groove Ball Bearings by Load, Seal & Material
Selection balances environment, mechanical loads, and unit cost across polyamide cage, full plastic bearings, and coated guide rollers.
Selecting nylon small deep groove ball bearings for the application comes down to balancing the operating environment, mechanical loads, and budget. Engineering and procurement teams match the right bearing design to their specific project requirements.
1. Match Materials to Load and Speed Demands
Nylon components—whether a polyamide cage or a full plastic structure—have distinct physical limits. To prevent premature wear, teams must match the material blend to target operating conditions:
- High Speed, Low-to-Moderate Load: A chrome or stainless steel bearing paired with a nylon cage is ideal. The polyamide cage offers low friction and high-speed stability, while the steel rings handle the heavy radial load.
- Corrosive or Wet Environments: Opt for full plastic bearings (solid nylon or POM) with glass or ceramic balls. These run entirely rust-free, though they support lower load limits and speeds than steel-hybrid options.
- Coated Guide Rollers: If the application involves sliding tracks or drawer glides, choose steel bearings with a molded outer nylon sleeve for quiet, low-vibration operation.
2. Select the Right Seal Type
Seal choice protects nylon small deep groove ball bearings from dust and moisture while balancing wear resistance and low friction.
Seal Type Comparison
| Seal Type | Best For | Friction Level | Dust Protection | Liquid Resistance |
|---|---|---|---|---|
| Open Structure | Clean environments, high-speed runs | Extremely Low | None | None |
| Metal Shields (ZZ) — compare small deep groove ball bearings double shielded with flanged | Dusty, dry environments; double shielded setups | Very Low | Excellent (Dry Dust) | Poor |
| Rubber Seals (2RS) — see sealed deep groove ball bearings | Wet, dirty, or high-moisture areas | Moderate | Maximum | Excellent |
3. Evaluate Cost vs. Performance for High-Volume Orders
For high-volume OEM production runs, over-specifying the bearings drives up unit costs unnecessarily. A practical three-step approach to keep the budget in check:
- Pinpoint the Precision Level: Don't pay for ABEC-5 tolerances if the application (like a sliding furniture wheel) only requires ABEC-1 performance.
- Assess Lubrication Needs: Running dry saves grease costs and prevents dust buildup, but pre-lubricated shielded bearings last longer under continuous operation.
- Leverage Custom Moldings: For custom shapes, a slightly higher upfront tooling cost for a custom-molded nylon outer ring often eliminates the need for extra machined components in the assembly, reducing the overall bill of materials (BOM).
Share bore/OD/width, cage material (PA66 or full plastic), seal suffix (ZZ/2RS), and annual volume for itemized nylon small deep groove ball bearings pricing—Contact JN Bearings with stamped part numbers (608, 625, MR63) or CAD drawings for OEM/ODM quotes.
Quality Control and Precision Testing for Nylon Small Deep Groove Ball Bearings
Dimensional, noise, and material verification keeps nylon small deep groove ball bearings within ABEC grades before shipment.
| Test Parameter | Equipment Used | Target Outcome |
|---|---|---|
| Dimensional Tolerance | Automated Laser Gauges & Micrometers | Precise ABEC-1 to ABEC-5 clearance matching |
| Noise & Vibration | BVT (Bearing Vibration Tester) | Decibel control for whisper-quiet running |
| Rotational Friction | Torque Testing Rigs | Ultra-low starting torque and smooth rotation |
| Material Strength | Hardness & Spectrometer Testing | Confirmed chemical composition of nylon and steel |
Specialized testing protocols confirm rolling bearings deliver the low friction and high reliability the application demands.
How Bearing Precision and Reliability Are Verified
- Dimensional Inspection & Tolerance Sorting: Every production run is tested with high-precision automated laser gauges. Bore sizes, outer diameters, and widths are sorted and verified to guarantee strict compliance with ABEC precision grades.
- Strict Noise & Vibration Testing: Since nylon cage ball bearings are chosen for quiet operation, teams test low noise ball bearings through digital vibration analysis. This filters out any micro-vibrations and ensures quiet performance in electric motors and office equipment.
- Load & Rotation Reliability Checks: Small precision bearings on specialized simulation rigs. Simulation rigs test behavior under realistic radial loads, ensuring they maintain high wear resistance and smooth rotation over time.
- Raw Material Verification: Every batch of raw polyamide (PA66) and steel alloys. Certified materials that ensure excellent corrosion resistance and thermal stability.
Ordering, Packaging, and Shipping Guide
Sourcing nylon small deep groove ball bearings is straightforward and efficient. Whether teams need standard miniature sizes or custom-engineered designs, production and logistics systems are optimized to keep the assembly lines moving without delay.
Minimum Order Quantities (MOQ) and Lead Times
Programs balance flexibility for prototyping with the high-volume capacity required for industrial production.
| Product Type | Minimum Order Quantity (MOQ) | Standard Lead Time |
|---|---|---|
| Standard Inventory Run | 1,000 pieces | 3–5 business days |
| Standard Production Run | 10,000 pieces | 2–3 weeks |
| Custom Dimensions / Profiles | 5,000 pieces | 4–6 weeks (including tooling) |
Sample Request and Evaluation Process
Material performance is critical in precision applications. A streamlined sample evaluation process ensures nylon small deep groove ball bearings meet exact noise, friction, and load requirements before bulk commitment to a bulk order.
- In-Stock Samples: Free samples are available for standard sizes (shipping fees apply).
- Custom Prototypes: Provided at cost, with the prototyping fee fully credited toward the first mass-production order.
- Testing Support: Technical data sheets and material certifications with every sample batch.
Professional Packaging Options
Packaging is designed to prevent contamination, moisture ingress, and physical damage during transit. Three primary packaging styles match inventory and automated assembly needs.
- Industrial Tube Packaging: High-density plastic tubes (usually 50 or 100 bearings per tube) designed for automated pick-and-place assembly lines. Prevents dust exposure until the moment of installation.
- Individual Box Packaging: Each bearing is sealed in an anti-static plastic bag and placed in a branded or neutral single box. Ideal for distribution and retail spare parts markets.
- Custom Brand Packaging: Full OEM branding supports printing part numbers, barcodes, and logos directly on the boxes, tubes, and master cartons to simplify incoming quality control and warehouse management.
Nylon Small Deep Groove Ball Bearings: Frequently Asked Questions
Direct answers for procurement teams and design engineers looking for the right nylon small deep groove ball bearings.
| Question | Answer |
|---|---|
| Is the nylon part the cage or the entire bearing? | It can be either, depending on the application needs. Production covers both configurations: |
| Can nylon small bearings work underwater or in wet places? | Yes, but material choice is critical. |
| Do nylon small bearings need grease or can they run dry? | It depends on the load, speed, and exact structure: |
| Can you manufacture custom dimensions from a CAD drawing? | Absolutely. OEM/ODM customization is available when designs require a non-standard outer diameter, custom groove shape, or a specific nylon bearing sleeve configuration, teams can send 2D or 3D CAD files (STEP, DWG, or PDF formats). Engineering teams review the tolerances and load ratings to deliver a custom solution that fits your exact application. Send STEP, DWG, or PDF files to Contact JN Bearings for tolerance review within 24 hours. |
