Motor Part Deep Groove Ball Bearings for Electric Motors - C3 Sealed

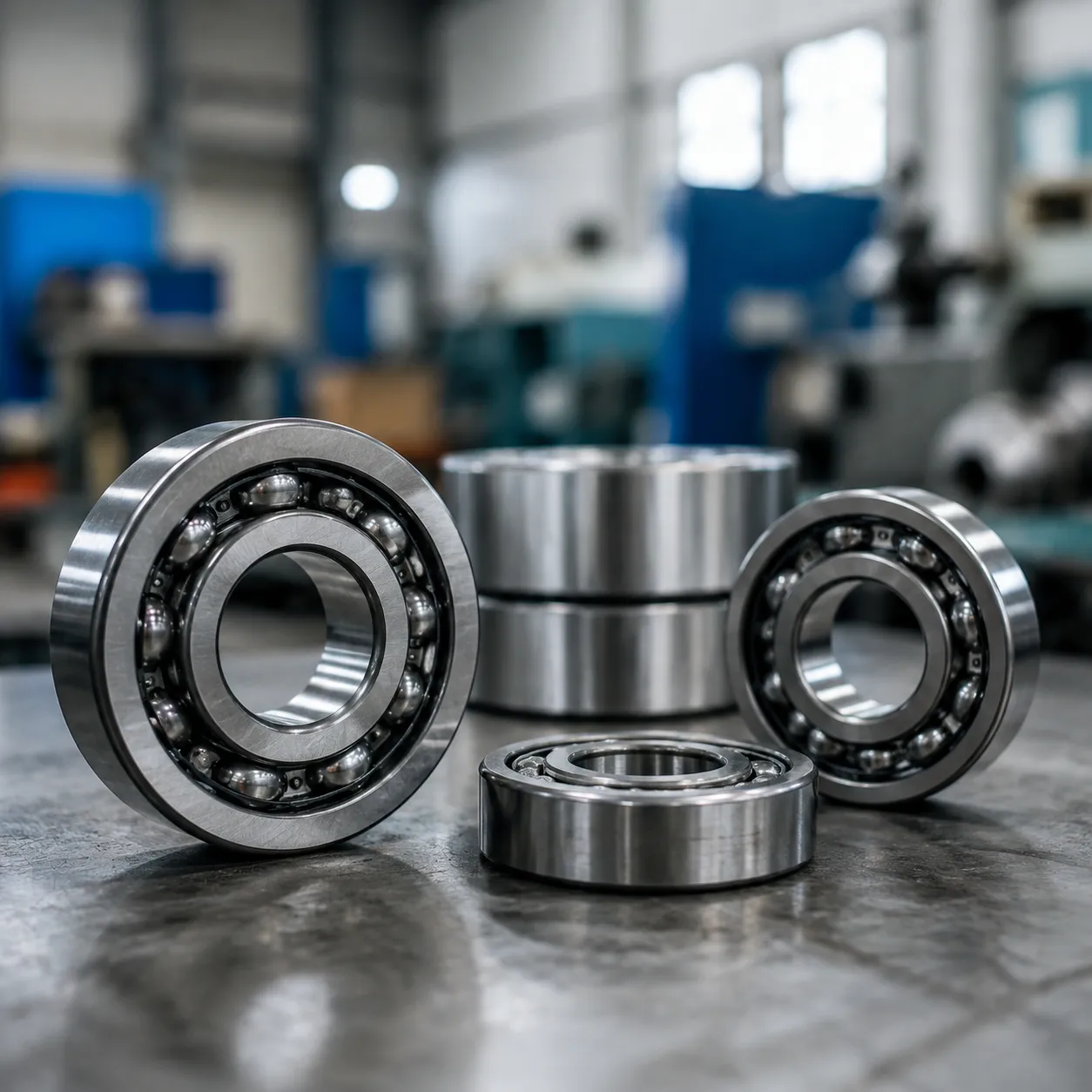

Motor Part Deep Groove Ball Bearings for Electric Motors

Motor part deep groove ball bearings are rolling-element bearings with uninterrupted raceway grooves that form a close arc with the balls. This design supports radial load and axial load in both directions, while the deep groove profile provides the high-speed capability and low-maintenance operation used in electric motors.

Single-row C3 sealed configurations combine low friction, low noise, and bearing steel durability for motor assemblies, compressors, pumps, fans, automobiles, and general machinery. The technical tables below define the dimensions, clearance, sealing, cage, lubrication, and vibration options required for part-number matching.

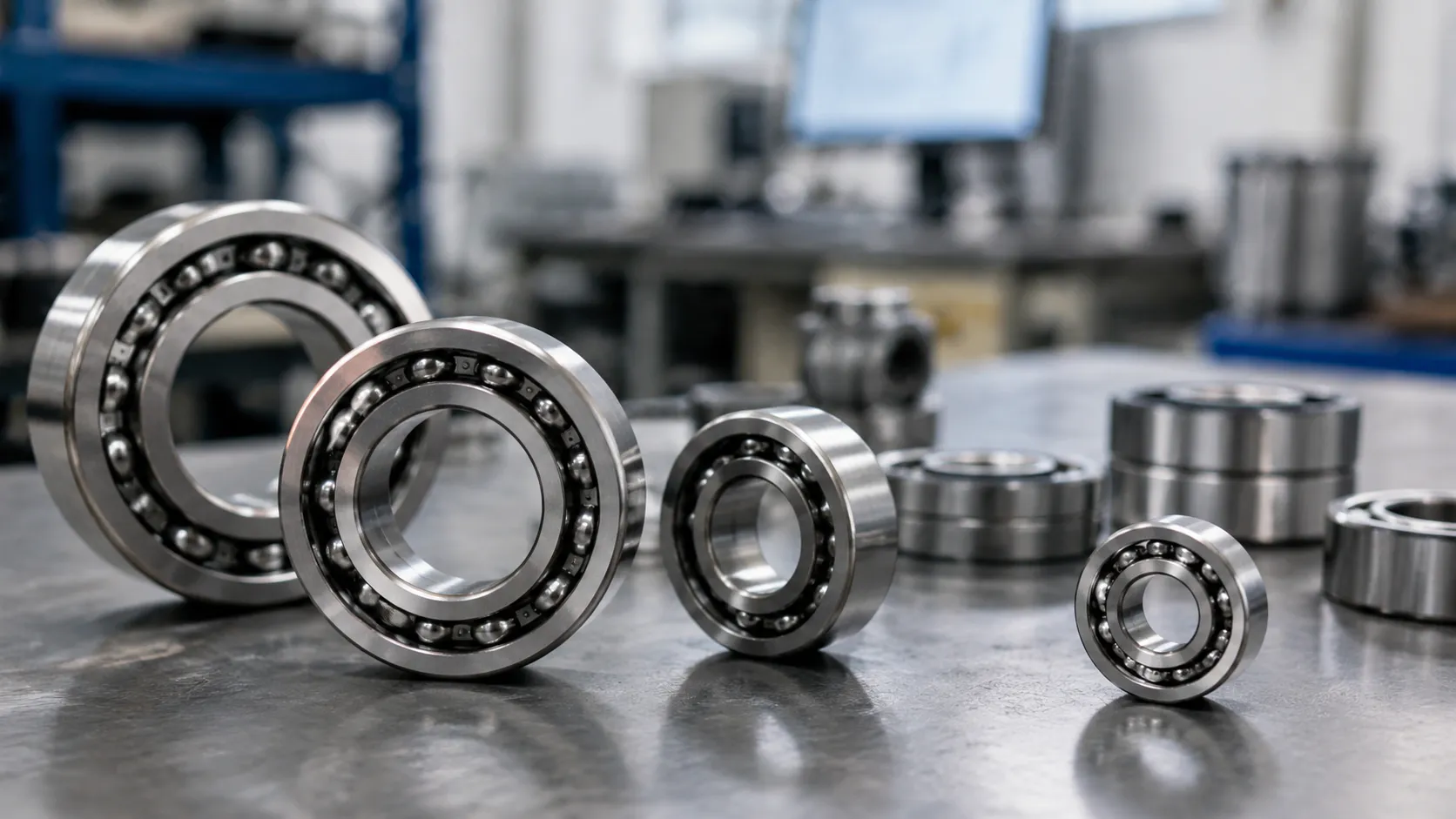

Motor Part Deep Groove Ball Bearings Technical Specifications

when sourcing a motor part deep groove ball bearing, getting the exact specifications is the difference between a smooth-running machine and a costly breakdown. the product range is manufactured and supplied high-precision electric motor bearings built to handle demanding industrial environments.

Here are the critical technical parameters automated systems use to build reliability into every deep groove motor bearing the product range delivers:

Core Dimensions and Rating Metrics

• Bore Diameter (d): Precision-ground to match standard motor shaft dimensions for a secure press fit.
• Outside Diameter (d): Engineered to precise tolerances for a perfect fit inside the motor end bell or housing.
• Width (B): Standardized metric widths to ensure drop-in compatibility during motor bearing replacement.
• Load Ratings: Optimized dynamic and static load ratings to support continuous radial load and light axial load demands.
• Speed Rating: High RPM capabilities designed specifically for the thermal and rotational demands of modern electric motors.

Configuration Options

quality control covers strict quality control over every radial ball bearing spec to ensure absolute interchangeability with existing part numbers, including standard 6200 series bearing options like the 6204-ZZ bearing and 6205-2RS bearing.

Key Benefits of Motor Part Deep Groove Ball Bearings

Electric motors demand components that handle high speeds while minimizing energy loss. These motor part deep groove ball bearings are engineered for these performance thresholds, helping equipment run efficiently with minimal downtime.

Performance Advantages for Electric Motors

• Low Friction & High Efficiency: Optimized raceway geometries reduce rolling resistance, which lowers power consumption and minimizes heat generation.
• Low Noise and Smooth Running: Every low-noise bearing undergoes strict vibration testing to ensure quiet operation, which is critical for household appliances and precision industrial machinery.
• High-Speed Capability: Precision-machined cages and premium lubrication allow these bearings to sustain high RPMs without thermal breakdown.
• Balanced Load Handling: Primarily designed to support heavy radial load demands while safely managing light axial load forces from magnetic centering and shaft expansion.
• Long Service Life: Manufactured from high-purity bearing steel to resist fatigue and deliver stable, predictable operation over millions of cycles.

Technical Performance Summary

Common Motor Bearing Types and Series

Choosing the right configuration for motor part deep groove ball bearings depends heavily on the operating environment, speed requirements, and maintenance cycles. The range includes deep groove motor bearings engineered to handle high radial loads while minimizing friction and energy loss.

Single-Row Deep Groove Ball Bearings

The single-row design is the standard choice for electric motors. It features deep, uninterrupted raceway grooves that allow the rolling elements to handle radial loads seamlessly while accepting light axial loads in either direction.

Open Type Bearings

Open bearings have no closures, leaving the balls and cage exposed. They are ideal for larger electric motor bearings integrated into closed housings where a continuous supply of clean oil or external grease lubrication is already provided.

Shielded Bearings (Z, ZZ)

Shielded bearings feature non-contact metal plates on one or both sides (ZZ). They excel in high-speed applications because they generate minimal heat and friction while keeping larger dust particles out of the rolling elements.

Rubber Sealed Bearings (RS, 2RS)

For dirty or high-moisture environments, rubber sealed ball bearings offer maximum protection. The contact rubber lips (2RS) physically seal the inner ring, keeping the factory-filled grease inside while locking out fine dust, water, and contaminants.

C3 Clearance Motor Bearings

Thermal expansion is a major factor in motor performance. A C3 clearance bearing provides extra internal radial room. This prevents the bearing from locking up or overheating when the motor shaft gets hot and expands during continuous operation.

Motor Bearing Series Quick Reference

Materials and Performance Options for Motor Part Deep Groove Ball Bearings

the product range is manufactured the motor part deep groove ball bearings using premium-grade materials designed to match the specific operating conditions. Selecting the right material combination directly impacts the service life, noise levels, and reliability of the electric motors.

Material Selection Guide

Advanced Seal and Lubrication Upgrades

To ensure stable operation under harsh conditions, available options include specialized performance modifications:

• Heat-Resistant Seals and Grease: Standard bearings fail when temperatures spike. available options include high-temperature fluororubber (Viton) seals coupled with premium synthetic greases (like Mobil Polyrex EM) capable of withstanding continuous operations up to 150°C (302°F).
• Corrosion-Resistant Solutions: For outdoor HVAC fans, marine pumps, and chemical processing motors, the product range apply specialized surface treatments or utilize full stainless steel configurations to prevent premature rust and failure.

Typical Motor Applications for Motor Part Deep Groove Ball Bearings

These motor part deep groove ball bearings deliver reliable, high-efficiency performance across a wide range of demanding environments. For original equipment manufacturing and routine fleet maintenance, the motor bearings support long-term operational stability.

Electric Motors

the radial ball bearing designs serve as the standard backbone for AC/DC electric motors, handling high rotational speeds while keeping vibration to an absolute minimum.

Pumps and Compressors

Engineered to withstand continuous duty cycles, these bearings handle both the radial loads and light axial loads common in industrial water pumps, vacuum systems, and HVAC compressors.

Fans and Blowers

the product range optimize the low-noise bearing series for industrial fans, ventilation systems, and blowers, where silent, smooth-running performance is critical.

Gear Motors and Power Transmission

the high-precision deep groove motor bearing units manage torque transitions efficiently, reducing energy loss and heat generation in compact gear assemblies.

Household Appliances

From washing machines to vacuum cleaners, OEM/ODM programs include sealed ball bearing solutions that prevent dust and moisture intrusion, extending appliance service life.

Industrial Machinery

the heavy-duty bearing for electric motors supports automated assembly lines, conveyor systems, and machine tools, ensuring consistent uptime for manufacturing facilities.

How to Choose the Right Motor Part Deep Groove Ball Bearings

Selecting the wrong bearing leads to premature motor failure, unwanted downtime, and costly maintenance. The selected motor part deep groove ball bearings should meet the required operating limits.

When sourcing replacements or designing new electric motors, engineers and buyers must evaluate five critical selection criteria to optimize performance and service life.

1. Dimension Matching

Always verify the bore diameter, outside diameter (OD), and width against the motor shaft and housing specifications. A precise interference fit prevents shaft slippage and housing wear.

2. Radial Internal Clearance

Standard clearance is rarely enough for high-performing electric motors. As the motor heats up, the shaft expands. Selecting a C3 clearance bearing or C4 clearance provides the necessary room for thermal expansion, preventing premature seizure at high operating temperatures.

3. Enclosure and Sealing Selection

the operating environment dictates the bearing protection. Choose the right configuration to balance contamination defense and speed capability:

4. Load, Speed, and Noise Ratings

• Load: Ensure the radial ball bearing capacity matches the motor's belt pull or coupling loads.
• Speed: Check that the application RPM does not exceed the bearing's thermal speed limit.
• Noise: Specify low-noise bearing grades (such as Z3 or Z4) for household appliances and HVAC fans to minimize vibration.

5. Part Number Interchangeability

Cross-reference industry-standard bearing codes before purchasing. For instance, a 6205-2RS bearing from the inventory directly interchanges with major global brands, matching exact dimensions, tolerances, and load capabilities to streamline procurement.

Part Number Guide for Motor Part Deep Groove Ball Bearings

Understanding bearing nomenclature is essential to getting the right replacement part for the electric motors. Standard metric series codes tell operators the size, load capacity, and design of the rolling-element component at a glance.

Common Metric Series Examples

Most deep groove motor bearing options follow a standard 4-digit numbering system that defines the series and bore size:

Quick Reading Rule: For part numbers ending in 04 or larger, multiply the last two digits by 5 to get the bore diameter in millimeters. For example, a 6205-2RS bearing has a 25mm bore (05 × 5 = 25).

Meaning of Suffixes (ZZ, 2RS, C3)

Suffixes indicate the sealing type and internal clearance of the deep groove ball bearing. Choosing the correct suffix ensures proper lubrication retention and thermal expansion tolerance.

• ZZ / 2Z: Dual metal shields. Best for high-speed applications in clean environments with low friction requirements.
• 2RS / 2RSH / LLU: Dual rubber seals. Offers maximum protection against dust and moisture contamination.
• C3: Greater internal clearance than normal. Crucial for motor bearings to accommodate shaft expansion caused by operating heat.
• C4: Extra loose clearance for extreme heat or high-vibration machinery.

How to Read Bearing Markings

Every reliable motor part deep groove ball bearing features laser-etched or stamped markings on the face of the inner or outer ring.

• Brand/Manufacturer Name: Identifies the source and quality standard.
• Basic Part Number: The 4-digit code (e.g., 6204) indicating dimensions.
• Suffix Codes: The sealing and clearance identifiers (e.g., ZZ C3).
• Country of Origin: Molded or etched for traceability.

Replacement and Cross-Reference Guidance

When sourcing a motor bearing replacement, brands may use slightly different suffix letters for the same design. A 6204-ZZ bearing from one manufacturer is functionally identical to a 6204-2Z from another. Always match the core dimensions—bore diameter, outside diameter, and width—along with the sealing type and clearance rating to guarantee a perfect drop-in fit.

Performance and Quality Control for Motor Part Deep Groove Ball Bearings

the product range is manufactured the motor part deep groove ball bearings to meet strict precision standards, ensuring reliable operation in demanding electric motors. Every production batch undergoes rigorous testing to guarantee long-term performance and minimize field failures.

Rigorous Inspection Standards

• Dimensional Accuracy: the product range verify every bore diameter, outside diameter, and width against precise tolerances to ensure a perfect fit on the motor shaft and housing.
• Roundness and Surface Finish: Advanced superfinishing processes reduce raceway roughness, minimizing friction and wear.
• Noise and Vibration Inspection: Every low-noise bearing undergoes 100% automated vibration testing (Z, V grades) to guarantee quiet operation in electric motors.
• Grease Filling Consistency: automated systems use automated injection systems to ensure the exact volume of high-speed grease is applied to every sealed ball bearing.
• Load and Speed Testing: test samples are subjected samples to simulated application conditions to verify dynamic load ratings and high-speed capability.
• Packaging and Cleanliness Control: All assembly takes place in cleanroom environments. Finished bearings are washed, oiled, and sealed immediately to prevent contamination.

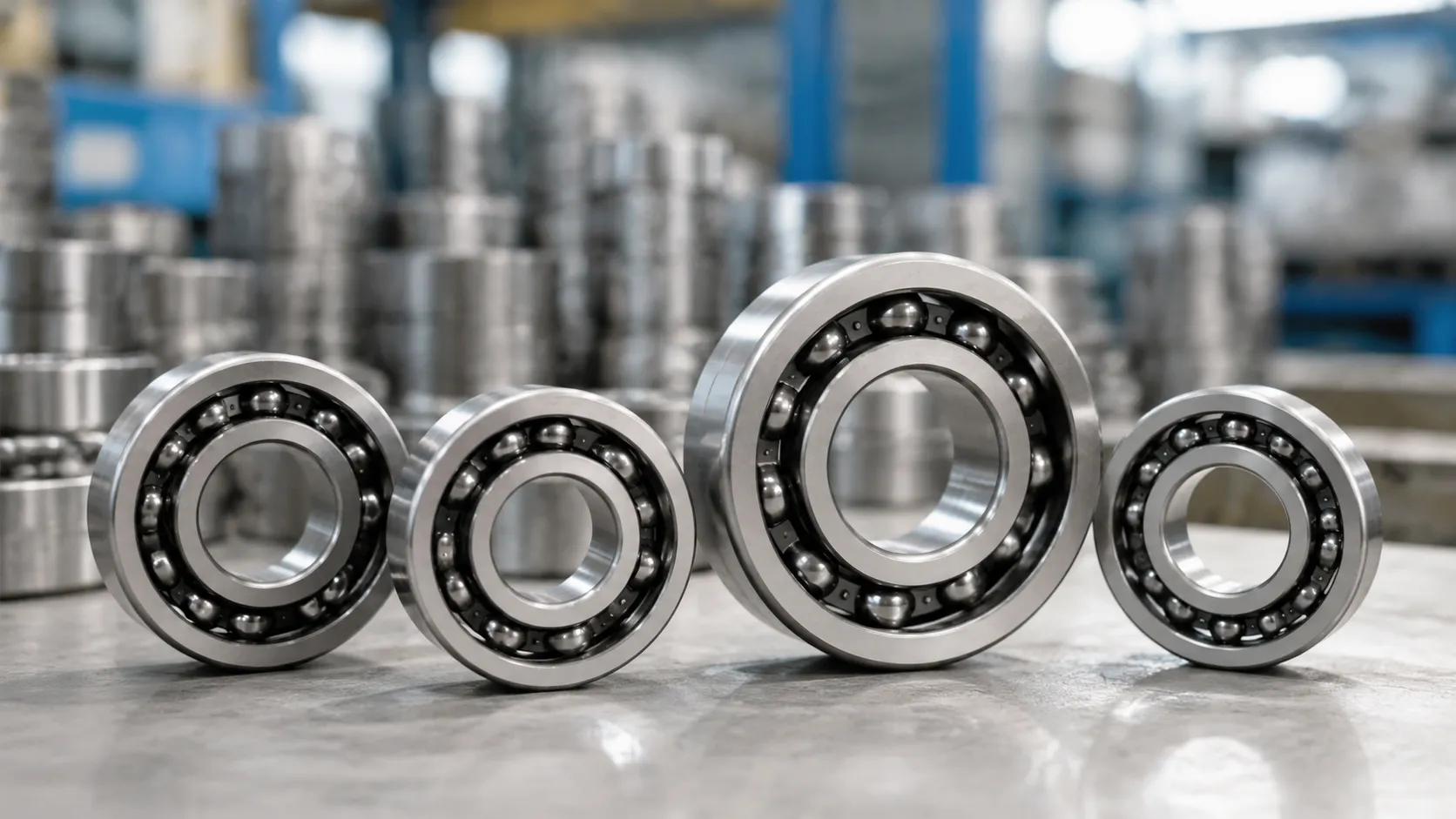

OEM / ODM Customization for Motor Part Deep Groove Ball Bearings

As a premium rolling-element manufacturer, the product range delivers tailormade motor part deep groove ball bearings engineered for specific operating conditions. the product range supports directly with motor manufacturers, procurement teams, and engineers to provide specialized solutions that standard off-the-shelf components cannot match.

Tailored Specifications for High-Performance Electric Motors

customization can modify every critical variable to ensure seamless integration with electric motor designs:

• Non-Standard Sizes: Custom bore diameter, outside diameter, and width configurations to fit unique housing and shaft requirements.
• Custom Clearance: Precision-adjusted internal clearance (such as custom C3 or C4 ranges) to manage thermal expansion in high-temperature or high-speed motor environments.
• Specialized Lubrication: High-speed, low-noise, and wide-temperature grease options sourced from global leading brands to maximize service life and eliminate grease leakage.

Private Label and Fleet Packaging

OEM/ODM programs support private-label requirements and supply chain efficiency with complete corporate branding solutions:

• Logo and Private Labeling: Precision laser marking of custom part numbers and logos directly on the bearing shields or rings.
• Customized Packaging: Industrial bulk packing for production lines, or individual boxes tailored with private-label branding and barcodes.

Application-Specific Engineering Support

application-specific options streamline procurement by delivering highly reliable, application-specific deep groove motor bearing solutions that match specified blueprint requirements.

FAQ: Motor Part Deep Groove Ball Bearings

What is the difference between ZZ and 2RS?

The main difference lies in the sealing material and how well it protects the motor part deep groove ball bearings from contamination versus friction.

When should I choose C3 clearance?

the specification should select a C3 clearance bearing when the electric motors operate at high speeds or under heavy thermal loads. Standard clearance can tighten up too much as the motor shaft heats up and expands, leading to premature failure. A C3 clearance provides the necessary extra internal room to accommodate thermal expansion, ensuring a long service life and smooth running.

Can these bearings be used in high-speed motors?

Yes. the deep groove motor bearing line is specifically designed for high-speed capability. By utilizing high-grade bearing steel, optimized cage options, and premium high-speed polyurea or lithium grease, these rolling-element bearings minimize heat buildup and vibration in demanding high-RPM electric motor applications.

How do I find the correct replacement part?

For a precise motor bearing replacement, check the markings stamped on the face of the current bearing. the marking will typically see a basic metric series number combined with suffix codes (e.g., 6204-ZZ or 6205-2RS).

• Bore Diameter: Match the inner ring to the motor shaft.
• Outside Diameter & Width: Verify the housing fit.
• Suffixes: Match the sealing type and clearance (like C3).

Do operators support OEM branding and custom specifications?

OEM/ODM customization is available for motor manufacturers. Options include non-standard sizes, custom clearance settings, application-specific high-temperature grease, and private-label logo printing to match specified procurement drawings.
