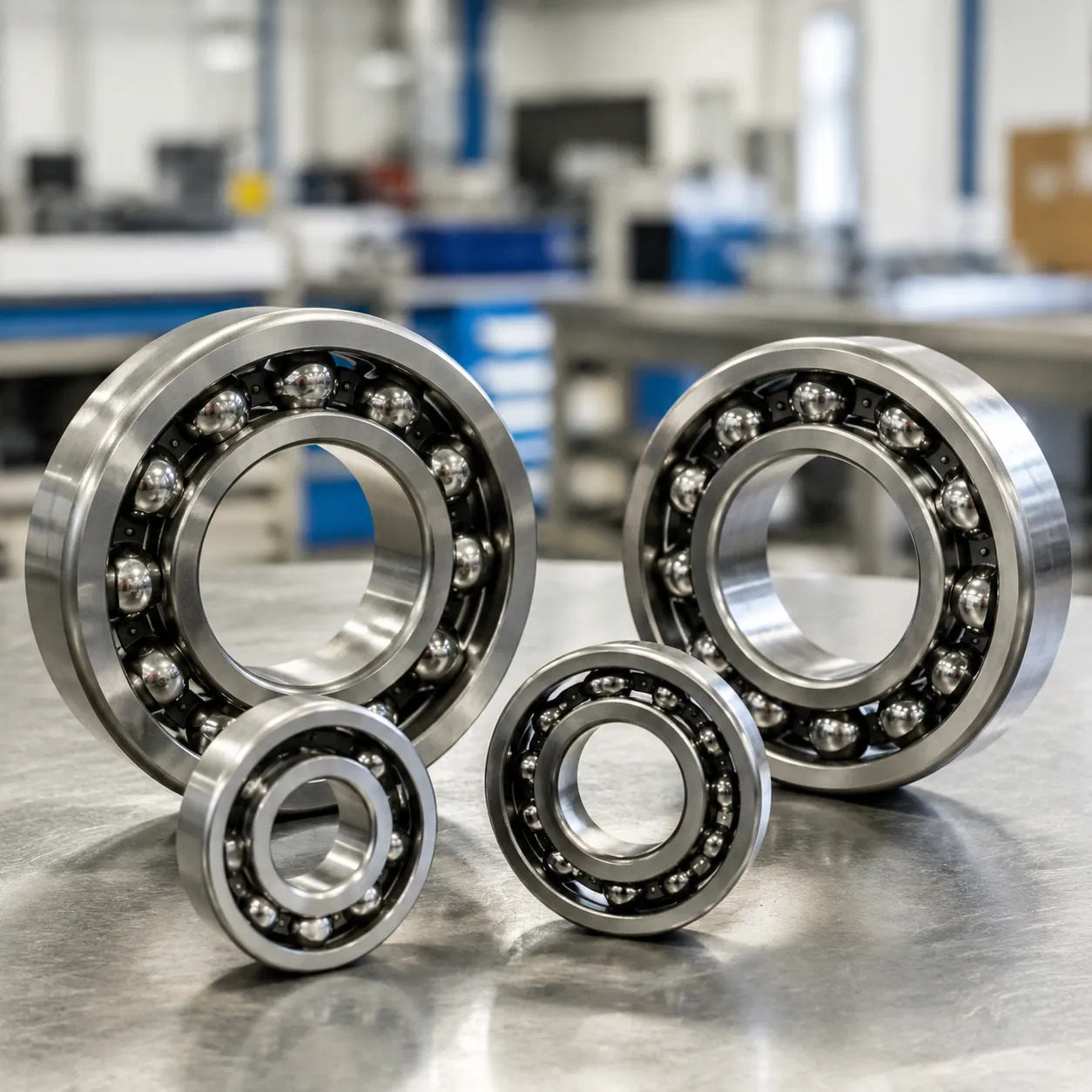

Custom Imperial Deep Groove Ball Bearings Inch Size Options

Why Off-the-Shelf Inch Bearings Fall Short

As an imperial deep groove ball bearings manufacturer and supplier, we constantly see standard inch ball bearings fail prematurely in the field due to a few critical bottlenecks:

• • Fixed Dimensions: Off-the-shelf R series, RLS series, or RMS series bearings force you to build your equipment around their static sizes rather than optimizing your own machinery layout.
  • Generic Clearances: Mass-produced options utilize standard internal clearances that cannot handle extreme thermal expansion or precise shaft synchronization.
  • Basic Load Ratings: Standard single row deep groove configurations lack the optimized internal geometry needed for unexpected combined radial and axial load stresses.
  • Subpar Sealing Options: Off-the-shelf parts offer rigid, low-tier open, sealed, or shielded choices that fail to protect the inner ring, outer ring, and cage assembly from fine abrasive grit or chemical washdowns.

When Do You Actually Need a Custom Solution?

Upgrading to custom imperial deep groove ball bearings becomes a necessity when downtime costs start impacting your bottom line.

Operational Trigger	Impact of Standard Bearings	Advantage of Customized Bearing Solutions
High Rotational Speeds	Excessive frictional torque, rapid heat buildup, and lubricant breakdown.	Modified raceway profiles and specialized cage materials to maximize limiting speeds.
Severe Enclosures	Rapid contamination ingress causing premature catastrophic failure.	Custom metal shields (ZZ), robust rubber seals (2RS), or specialized non-contact labyrinths.
Non-Standard Shafting	Expensive machining modifications to shafts and housings to fit standard catalogs.	Tailored round bore sizes, custom outer diameters, and integrated features like a snap ring groove or a custom flange.

When your application demands unique basic dynamic load ratings, specialized materials, or exact space constraints that standard catalog components simply cannot support, switching to premium ball bearings USA production guarantees the reliability your machinery requires.

Understanding Custom Imperial Deep Groove Ball Bearings

As an imperial deep groove ball bearings manufacturer and supplier, we engineer these custom specialty bearings from the ground up to solve precise fitment and performance challenges that catalog parts cannot touch.

Unlike off-the-shelf options, custom imperial deep groove ball bearings feature tailored internal geometries. We modify the boundary dimensions, optimize the ball complements, and adjust the raceway depths to match your exact operating conditions. This ensures a perfect drop-in fit for US industrial machinery, vintage equipment restorations, and specialized domestic manufacturing lines.

How Deep Groove Engineering Handles Radial and Axial Loads

The core strength of a single row deep groove design lies in its versatility. The deeply channeled raceways on both the inner ring and outer ring closely cradle the premium ball bearings, allowing the assembly to handle multi-directional forces simultaneously.

Load Type	Handling Capability	Engineering Mechanism
Radial Load Capacity	High	Deeply grooved raceways maximize the contact surface area, allowing the bearing to support significant weight perpendicular to the shaft.
Axial Load Capacity	Moderate to High	The high shoulder design of the inner and outer rings allows the bearing to take thrust loads in both directions, even at high rotational speeds.

By customizing the dynamic load ratings and radial clearance, we balance these forces to minimize frictional torque and prevent premature wear in high-demand systems like electric motors and heavy-duty gearboxes.

Customizing Dimensions Beyond the Standard Catalog

As a premium ball bearings manufacturer and supplier, we eliminate those limitations by engineering custom imperial deep groove ball bearings tailored to your exact dimensional envelope.

Whether you are retrofitting legacy American machinery or developing a new high-performance system, we modify the core geometry of the bearing to fit your application perfectly.

Precision Bore, OD, and Width Adjustments

We change the traditional boundaries of the R series bearings, RLS series, and RMS series by offering flexible sizing options:

• • Round Bore Sizes: Customized internal diameters to match non-standard shafting without requiring costly sleeve adapters.
  • Outer Diameters (OD): Tailored external sizing to press-fit seamlessly into modified or worn housing bores.
  • Width Modifications: Expanded or narrowed face-to-face dimensions to handle specific axial space constraints or to accommodate unique integrated sealing systems.

---

Engineering Raceway Profiles for High Rotational Speeds

Standard internal geometry isn’t always enough when your application demands maximum efficiency. To optimize performance, we modify the internal structure of the inner ring and outer ring:

Modification Type	Design Detail	Performance Benefit
Super-Finished Raceways	Precision honed tracking paths	Lowers frictional torque and minimizes heat generation.
Optimized Conformity	Matched ball-to-groove ratio	Maximizes radial load capacity while maintaining high-speed capabilities.
Altered Radii	Relieved shoulder profiles	Enhances axial load capacity and ensures smooth operation under thrust loads.

By altering the raceway profiles, we directly improve both the basic dynamic load rating and the limiting speeds of the single row assembly. This ensures your custom specialty bearings run cooler, last longer, and handle the exact stress profiles of your industrial environment.

Material Selection for Extreme Environments

Standard parts won’t cut it when your machinery faces washdowns, high heat, or electrical stray currents. As an experienced imperial deep groove ball bearings manufacturer, we custom-engineer the material composition of your inner ring, outer ring, and rolling elements to survive the exact punishments of your operating environment.

Chrome Steel vs. Stainless Steel for Corrosion Resistance

Choosing the right steel alloy is the first line of defense against premature bearing failure. We balance mechanical toughness with environmental resistance based on your specific setup:

• • High-Carbon Chrome Steel (52100): Our default choice for high radial load capacity and extreme fatigue life in clean, well-lubricated conditions. It offers incredible hardness but lacks protection against moisture and chemicals.
  • Stainless Steel Bearings (440C): The industry standard for US food processing, marine, and chemical applications. It resists rust and oxidation during harsh washdown cycles while maintaining high basic load ratings.
  • Nitrogen-Enhanced Stainless Steel: For extreme moisture, this option delivers superior corrosion resistance compared to standard 440C without sacrificing surface hardness.

Ceramic Hybrid Configurations for High Temperatures and Insulation

When operating conditions push beyond the limits of traditional metal, we upgrade your inch ball bearings to a ceramic hybrid configuration. By pairing steel rings with silicon nitride ($Si_3N_4$) ceramic balls, we unlock performance characteristics that standard bearings can’t match.

Feature	Steel Balls	Ceramic Balls (Hybrid)	Engineering Benefit
Electrical Resistance	Conductive	Fully Insulated	Eliminates electrical arcing and pitting in electric motors.
Weight & Density	High (7.8 g/cm³)	Low (3.2 g/cm³)	Reduces centrifugal force for extreme high rotational speeds.
Thermal Expansion	Standard	Extremely Low	Prevents binding and maintains clearance at high temperatures.
Frictional Torque	Standard	Ultra-Low	Lowers operating temperatures and extends lubrication life.

These hybrid custom specialty bearings run cooler, last up to five times longer than all-steel alternatives, and completely isolate stray currents in modern variable-frequency drive (VFD) motors.

Locking Out Contamination from Custom Imperial Deep Groove Ball Bearings

Dust, moisture, and debris are the fastest ways to kill a precision bearing. When we manufacture custom imperial deep groove ball bearings, we design the enclosure and cage assembly to match your exact operating conditions.

Choosing the Right Enclosure: Metal Shields vs. Rubber Seals

Selecting the right protection directly impacts the limiting speeds and frictional torque of your inch ball bearings.

• • Metal Shields (ZZ): Best for high rotational speeds and low-torque applications. These non-contact shields keep out larger particles without adding friction, making them perfect for clean environments like electric motors.
  • Rubber Seals (2RS): These contact seals offer maximum protection. Made from nitrile rubber or synthetic polymers, they physically seal against the inner ring to lock out fine dust, water spray, and heavy contamination.

---

Custom Cage Materials

The cage (or retainer) keeps the balls properly spaced within the inner and outer ring tracks. We customize the cage material to handle specific thermal, chemical, and mechanical stresses.

Cage Material	Best For	Key Advantage
Pressed Steel	General industrial applications	Rugged, cost-effective, standard for R series bearings
Machined Brass	High-vibration & heavy shock loads	High strength, superior stability in harsh gearboxes
Engineered Polymers	High-speed, quiet, or low-lubricant setups	Low weight, minimizes frictional heat and wear

As a premier ball bearings manufacturer and supplier, we specialize in open, sealed, and shielded open-sealed-shielded configurations tailored to your machine layouts. By matching the right enclosure with an optimized cage, we ensure your single row deep groove setup achieves its full basic dynamic load rating without premature failure.

Lubrication for Custom Imperial Deep Groove Ball Bearings

Standard off-the-shelf lubrication often fails under extreme operational stress. As a dedicated manufacturer, we tailor the lubrication of our custom imperial deep groove ball bearings to match your exact speed, temperature, and torque requirements, ensuring maximum service life.

Premium Grease for High-Speed Performance

High rotational speeds require lubricants that minimize frictional torque and prevent heat buildup. We utilize advanced synthetic greases engineered to stay channeled in the raceways, protecting the inner and outer ring during rapid acceleration.

• • Polyurea-Based Greases: Excellent water resistance and high-temperature stability, making them the standard choice for electric motors.
  • Ester-Based Synthetics: Ideal for reducing startup torque at low temperatures while maintaining an optimal oil film at high rotational speeds.
  • Aeroshell & Mobil Options: We fill your single row deep groove configurations with premium USA-sourced greases designed to meet strict basic dynamic load ratings.

Solid Oil and Specialized Lubricants

For applications where re-lubrication is impossible or contamination risk is high, we offer maintenance-free solid oil configurations and specialty dry films.

Lubricant Type	Key Advantage	Best Application
Solid Oil Matrix	Fills the entire cavity; blocks out external dust and moisture.	Food processing, washdown environments, and highly contaminated areas.
Perfluoropolyether (PFPE)	Non-flammable, ultra-low outgassing, operates up to 500°F.	Vacuum systems, aerospace components, and extreme thermal setups.
Dry Film Coatings	MoS2 or tungsten disulfide plating prevents metal-to-metal contact.	Ultra-low speed, high-load, or cleanroom industrial applications.

By matching the right lubrication strategy to our inch ball bearings, we eliminate premature wear and cut your maintenance costs down to zero.

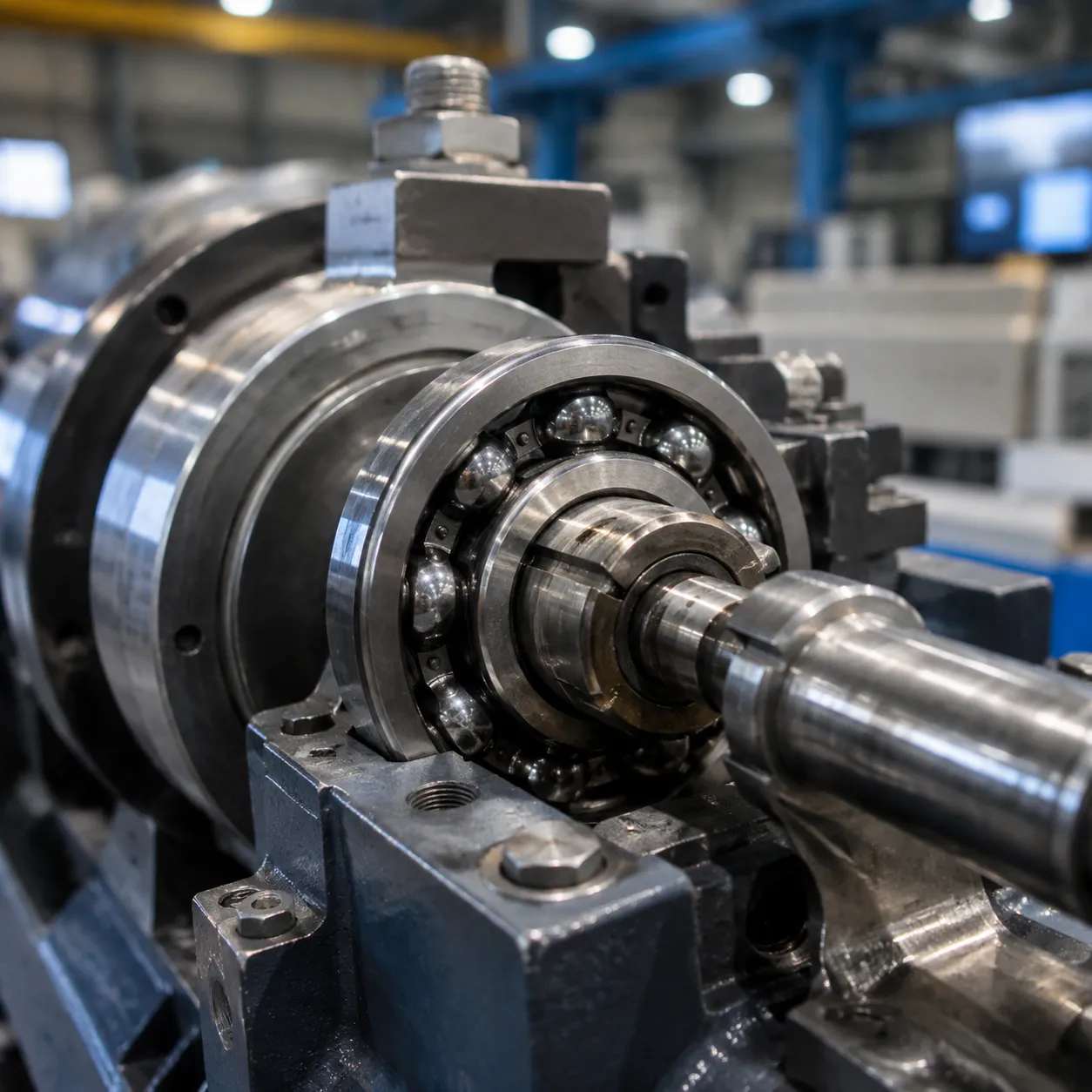

Common Applications for Custom Imperial Deep Groove Ball Bearings

When standard metric sizes won’t fit legacy American equipment or high-performance US-spec machinery, custom imperial deep groove ball bearings are the exact solution required to keep operations running smoothly. We engineer these specialty inch ball bearings to handle demanding environments across major domestic industries.

Automotive and Electric Motor Integration

Electric motors and automotive drivetrains require bearings that minimize frictional torque while operating at high rotational speeds. Standard off-the-shelf parts often fail under the unique vibrational stresses of modern EV power units and custom custom-built US machinery.

• • Electric Motors: Custom clearance and high-grade grease reduce heat buildup, extending the basic dynamic load rating under constant operation.
  • Automotive Drivetrains: Tailored inner and outer ring dimensions ensure a perfect press-fit into localized housing units without requiring costly retrofits.

Industrial Machinery, Pumps, and Heavy-Duty Gearboxes

Heavy industrial applications put immense stress on both the radial load capacity and axial load capacity of a bearing assembly. From automated manufacturing plants to fluid handling facilities, custom imperial bearings keep critical infrastructure moving.

Application Type	Performance Requirement	Custom Feature Added
Industrial Gearboxes	High shock loads & tight spaces	Modified RMS series profiles with enhanced steel caging
Centrifugal Pumps	Corrosion & chemical exposure	Stainless steel bearings paired with custom rubber seals (2RS)
High-Speed Machinery	Low maintenance & high RPM	Specialized RLS series dimensions with ceramic hybrid balls

By adjusting the boundary dimensions, integrating a custom snap ring groove, or optimizing the cage assembly, we deliver premium ball bearings USA manufacturers rely on to eliminate downtime and maximize equipment lifespans.

FAQ

Because we design and manufacture these parts to your exact specifications, lead times generally range from 4 to 8 weeks, depending on material availability and design complexity. Standard R series configurations with minor modifications move faster, while fully customized specialized bearings requiring unique geometry or ceramic hybrid setups take a bit longer. We prioritize minimizing your downtime, and our US-based team provides hard shipping dates right at the quoting stage.

Can I get a custom snap ring groove or flange added to an imperial size?

Yes. As a dedicated imperial deep groove ball bearings manufacturer and supplier, we frequently add custom features like a snap ring groove, integrated flanges, or unique sealing tracks to standard inch ball bearings. Modifying the outer ring or inner ring during the manufacturing phase ensures perfect structural integrity, allowing the bearing to handle axial loads and drop directly into your existing housing without manual modifications.

How do I determine the right radial clearance for my custom application?

Choosing the correct radial clearance depends on three main operational factors:

• • Operating Temperature: High heat causes the inner ring to expand, which reduces internal clearance.
  • Fit Interference: Tight shaft or housing press-fits squeeze the rings and reduce play.
  • Rotational Speed: High rotational speeds require precise clearance to control frictional torque and heat buildup.

For standard electric motors, a standard or C3 clearance is typical. For heavy-duty gearboxes or extreme temperatures, we customize the internal clearance to ensure your single row deep groove setup maintains its optimal basic dynamic load rating under full operating conditions.
